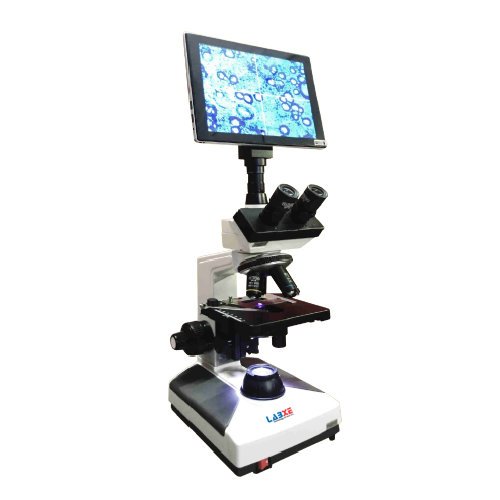

Specifications: Labxe Digital LCD Microscope
1. Mechanical tube length 160 mm.
2. 45 inclined with 360 degree rotatable binocular head.
3. Co-axial built in Mechanical stage 140 x 140 mm with fine vernier graduation, designed with convenient
coaxial adjustment for jerk free smooth slide manipulation through 55 x 75 mm.
4. Dust proof quadruple/ quintuple ball bearing revolving nose piece with positive click stops.
5. Co-axial coarse & fine focusing adjustment knobs on ball bearing guide ways. Fine motion, graduated
to .002 mm.
6. Substage Abbe type N.A. 1.25 condenser focusable with rack& pinion, continuously variable iris diaphragm
with built in swing out filter holder.
7. Staple Grey, chemical resistant, back-on finish.
8. Adjustable focus lock prevents damage to valuable slide and objectives.
9. Power input 110-220V SMPS based, in built illumination 3W LED or 6w-20w halogen lamp (optional)
10. Complete parts of the microscope are pressure Die-casted.
11. With dust cover packed in styrofoam packing.
